Portable Coating Thickness Gauge Cable Flaw Detector

Name: Portable Coating Thickness Gauge Cable Flaw Detector
Brand: Suzhou Desisen (DSS) Electronics
Price: 1 USD

China Portable Coating Thickness Gauge Cable Flaw Detector wholesale

Brand Name : Suzhou Desisen (DSS) Electronics

Model Number : FET-9HS

Place of Origin : China

MOQ : 1set

Price : negotiation

Payment Terms : T/T,L/C

Supply Ability : 100sets

Delivery Time : 2-3weeks

Ratio of gains : (Y/X)0.1～10.0

Frequency scope : 64 Hz～2 MHz,satisfying detection of multiple kinds of metal material

The scope of gains : 0～99.0 dB ,continuously adjust ,stepping is 0.5db

Phase position rotation : 0～359°,continuously adjust,stepping is 1 degree

Detecting speed : 0-50m/min

Digital filtering : low pass(0Hz～2000Hz)high pass(0Hz～2000Hz)

Certification : ISO 9001, CE

Contact Now

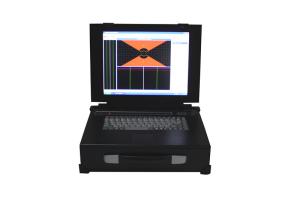

The FET-9HS is a professional portable device for detecting flaws in metal wires and cables. Using advanced eddy current technology, it provides real-time impedance plane diagrams and time-based analysis on screen.

Key Benefits

Versatile Detection: Works with all types of metal materials
Fully Digital Design: Stores multiple standard detection procedures
User-Friendly Interface: Easy to configure and operate
Flexible Connectivity: Compatible with various field equipment

Technical Specifications

Detection Capabilities

Detection channels: 1 (expandable)
Frequency range: 64 Hz - 2 MHz
Detection speed: 0-50 m/min
Battery life: 6-8 hours (lithium battery)

Performance Features

Gain range: 0-99.0 dB (0.5 dB steps)
Phase rotation: 0-359° (1° steps)
Gain ratio (Y/X): 0.1-10.0
Probe drive levels: 1-8

Smart Functionality

Digital filtering (low/high pass: 0-2000 Hz)
Automatic flaw detection and reporting
Data storage for procedures and results
Multilingual interface (English/Chinese)
Real-time and delayed alarm outputs

Display Options

Impedance and time-based views
Rectangular and polar coordinate systems
Real-line and blanking display modes

Portable Coating Thickness Gauge Cable Flaw Detector
